JACK-AIVA Machinery CO,.LTD
DUCTWORK MACHINERY MANUFACTURER
 |
| Place of Origin: | China |
| Brand Name: | Jack-Aiva |
| Certification: | CE SGS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T L/C |
| Product Name: | Slip Flange Former Machine | Raw Material:: | GI Steel DC51+Z |
|---|---|---|---|
| Forming Roller Station Quantity:: | About 16 Stations | Main Motor:: | 4kw, AC380v, 50HZ |
| Cutting Motor:: | 1.75kw, 2xAC220v, 50HZ | Weight (KG):: | About 2000 |
| Line Dimension (L*W*H)mm:: | 4850x700x1500 | TDC Flange Profile:: | TDC Flange With Beading OR Without Beading |
| Highlight: | 700mm TDC Flange Machine,1500mm TDC Flange Machine,1500mm Slip flange Former Machine |
||

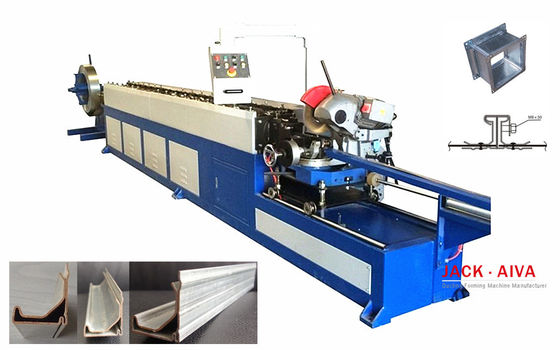

TDC Flange Machine, Slip flange Former Machine
TDC Flange machine for the Manufacture of Air-condition Rectangular Ducts Fittings
Our Duct TDC flange machine was specially designed to manufacture the Slip flange, widely adopted in HVAC Ducting system.
The TDC flange can customized designed according to client requirements from 15mm to 50mm, suitable for medium and large producers of square HVAC duct.
Our slip flange machine is consisted of following parts. vertical de-coiler, roll former, cutter and run out table.
The cutting system adopts the round saw style cutter normally, also the hydraulic die cutter can be customized design and supplied.
Our flange machine can be equipped with glue-water injection of sealing mastic directly during the forming process.
Main Parameters - TDC Flange Machine For Rectangular duct flange
| Raw material: | GI steel DC51+Z | |
| Raw material width (mm): | According to the client’s sample or drawings | |
| Raw Material Thickness (mm): |
TDC flange 15mm, 20 mm profile: 0.6 - 0.8 mm TDC flange 30mm, 35 mm profile: 0.8 -1.0 mm TDC flange 40mm, 50mm profile: 1.0 - 1.2 mm (Or can be according to client’s requirement) |
|
| Forming roller station quantity: | About 16 Stations | |
| Motor power | Main motor: | 4kw, AC380v, 50HZ |
| Cutting motor: | 1.75kw, 2xAC220v, 50HZ | |
| Weight (KG): | About 2000 | |
| Line Dimension (L*W*H)mm: | 4850x700x1500 | |
| TDC flange profile: | TDC flange with beading OR without beading | |
HVAC TDC Duct flange / Slip flange
Our manufacturer started to produce the Slip flange machine 20 years, the earliest TDC flange machine supplier in china, now still is the leading supplier in this industry. With so many years development, we are the exclusive one in china to supply all the flange machines from TDC-15 to TDC-50, from GI steel TDC flange machine to Stainless steel flange.
The TDC Flange also name slip flange, is one of the two universal rectangular duct flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure.
TDC flange Installation
